A majority portion of web applications are largely data-intensive, and not compute-intensive. The speed of fetching the overall data to process the requests is generally the limiting factor as is a general indication of data-intensive applications. One of the major issues these data-intensive applications face is ensuring data correctness even though the application faces severe issues internally. How can customer requests be served with satisfactory performance, even if a couple of systems are down? This is the question we would be asking ourselves, and will try to explore.

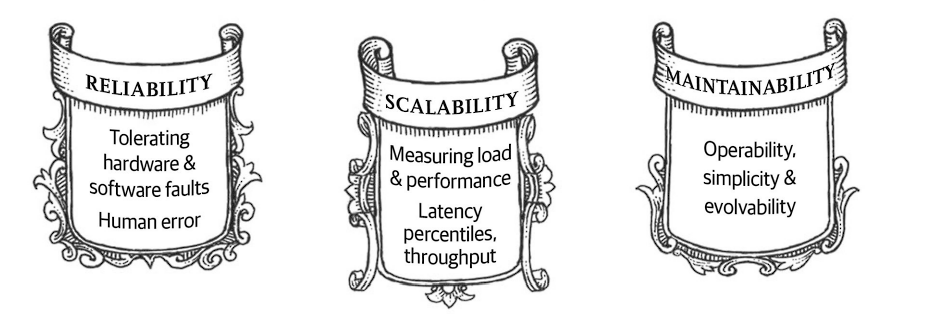

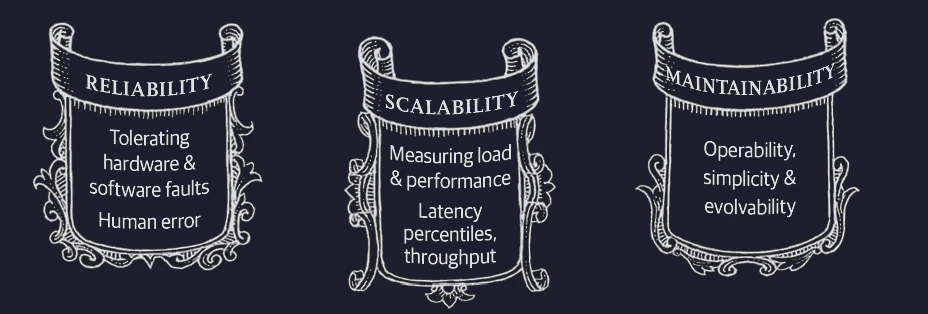

From a software architecture perspective, the following three concerns need to be addressed for such applications:

1. Reliability:

The system should continue to work correctly even with failures and faults. Fault denotes that one or more components are facing the issue, whereas failure means the service as a whole stops providing service. Fault-tolerance mechanisms are placed to prevent faults from causing failures.

2. Scalability:

It describes the system’s ability to cope with an increased load. It’s to be noted that scalability is multi-dimensional. We need to ask questions like “If the system grows in a certain way, what would be our option to handle such growth” and “How adding additional resources would handle the additional load?”.

Latency and response time are two of the most used metrics to measure how scalable the system is. However, it’s to be noted they’re not synonymous.  Latency is the duration that a request is waiting to be handled, and response time is the delay that the customer observes in completing a request. p95, p99 and p999 are the most used percentiles to capture the metrics. For example, Amazon uses p999 to measure the metrics, as the slowest requests often come from users having the most data, making them high-value customers, and beyond this percentile, reducing the response time would be difficult, due to various random events that are beyond the control of web-application.

Approaches for coping with load:

• How  do we maintain good performance even when the load parameters increase by some amount
• Scaling up (vertical scaling) vs Scaling out (horizontal scaling)
• Common wisdom until recently is to keep the database on a single system (scale up) until scaling cost or high availability requirements force to make it distributed

3. Maintainability:

• Operability: Making life easy for operations
• Simplicity: Managing complexity
• Evolvability: Making future change easy
